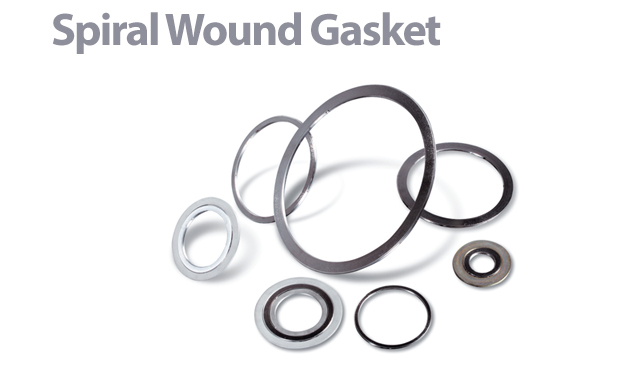

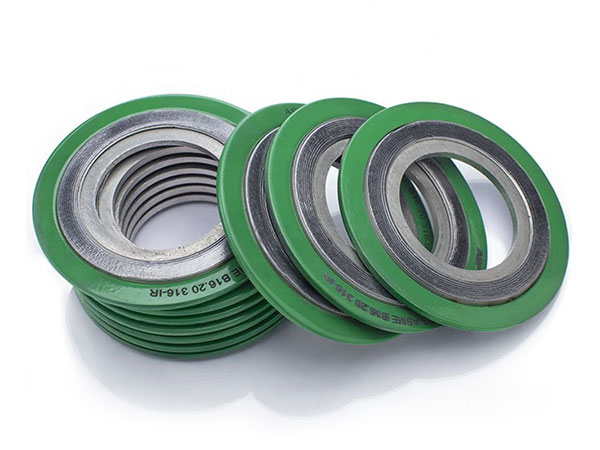

SPIRAL WOUND GASKETS

Spiral Wound  gaskets are suitable across a wide range of fluctuating service pressure – up to 250 bar – and temperature – from -200°C to 1000°C – depending on their construction.

The sealing element consists of a V-shaped metal strip spirally wound in combination with a sealing material filler.

The metal strip provides outstanding resilience, while the flexible sealing filler guarantees excellent sealing.

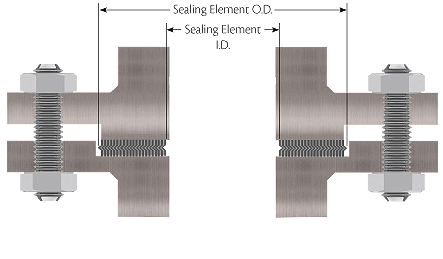

No ring – Winding Pipes Under 24″

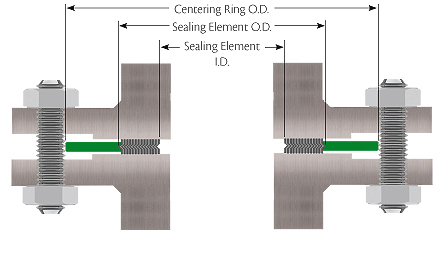

Outer ring only/ Inner ring only Pipes Under 24″

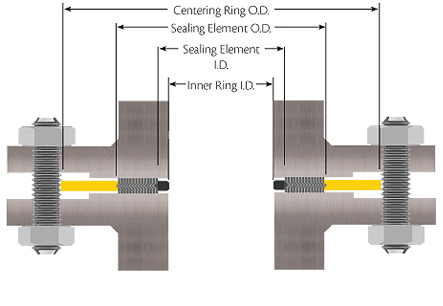

Outer and Inner ring Pipes Under 24″

Winding Materials Temp. Range  Stainless Steel 304 -200°C to 420°C  Stainless Steel 316L -200°C to 460°C  Filler Materials  Graphite Up to 460°C  PTFE Up to 500°C  Centering Ring  Carbon Steel Up to 538°C  Inner Ring Materials  Stainless Steel 304 -200°C to 420°C  Stainless Steel 316 -200°C to 460°C

* Stainless steel 316 and 304 can exceed their continuous operating temperatures, up to 760°C, for short‒term intervals. However, this may result in intergranular corrosion. For more information,PLEASE CONTACT.
